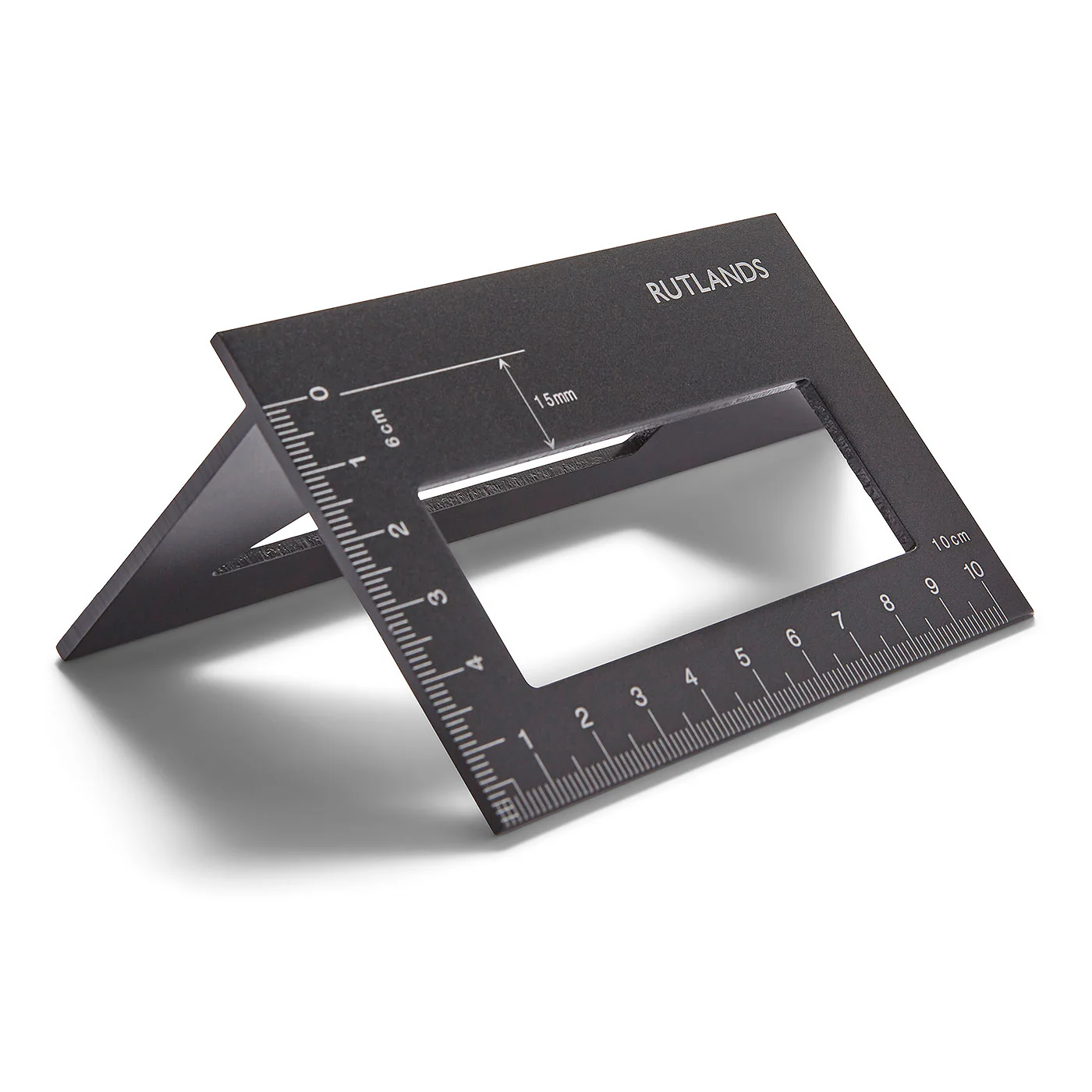

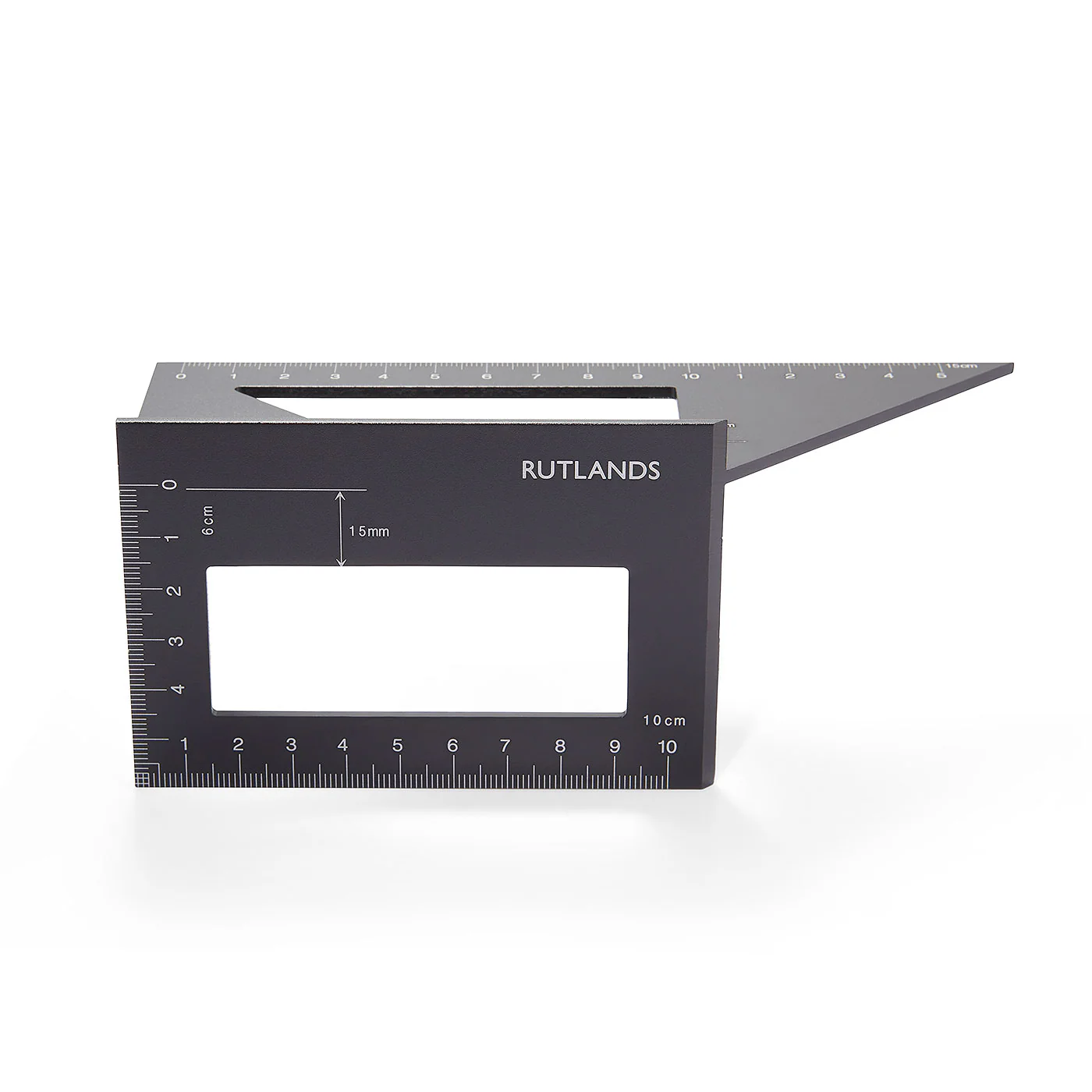

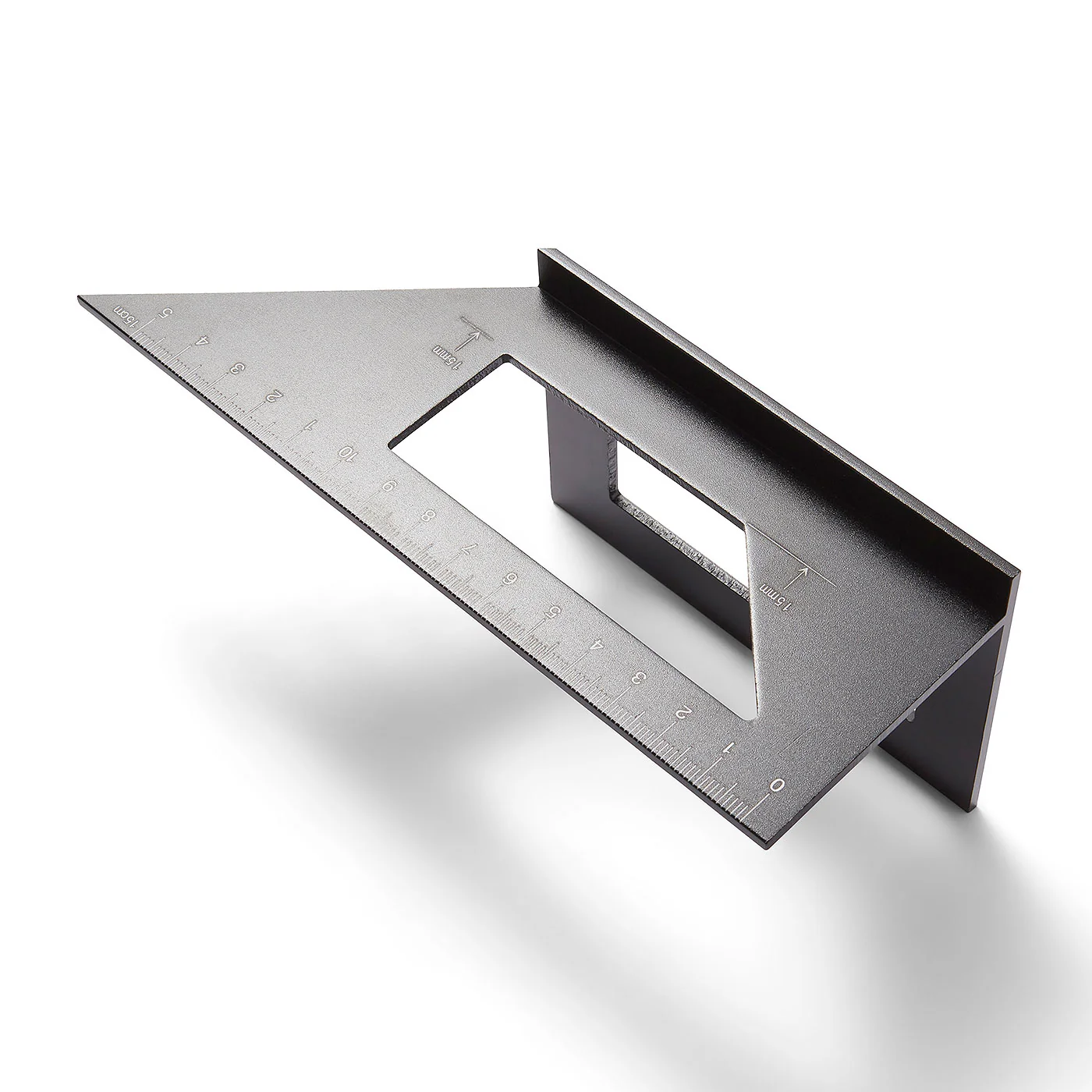

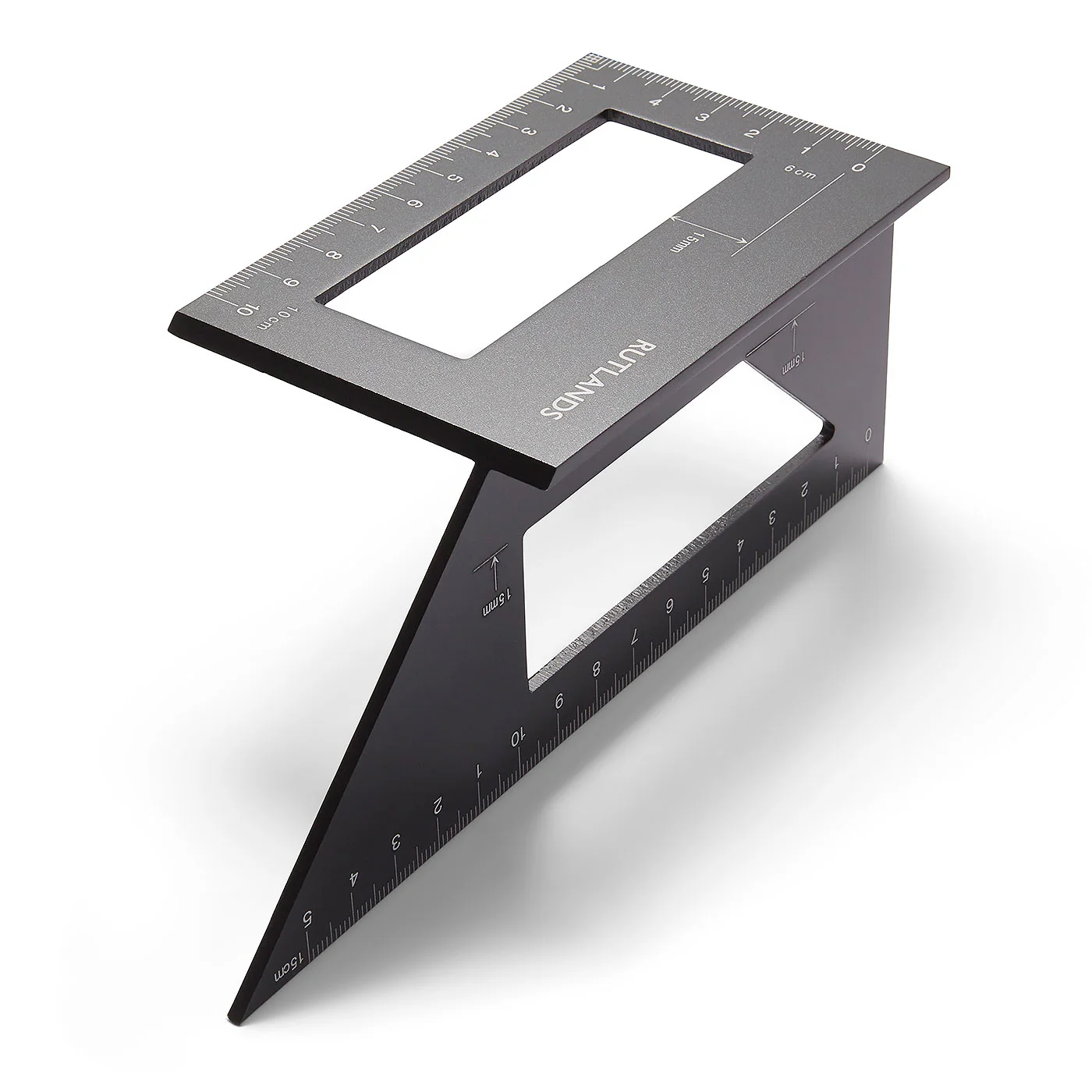

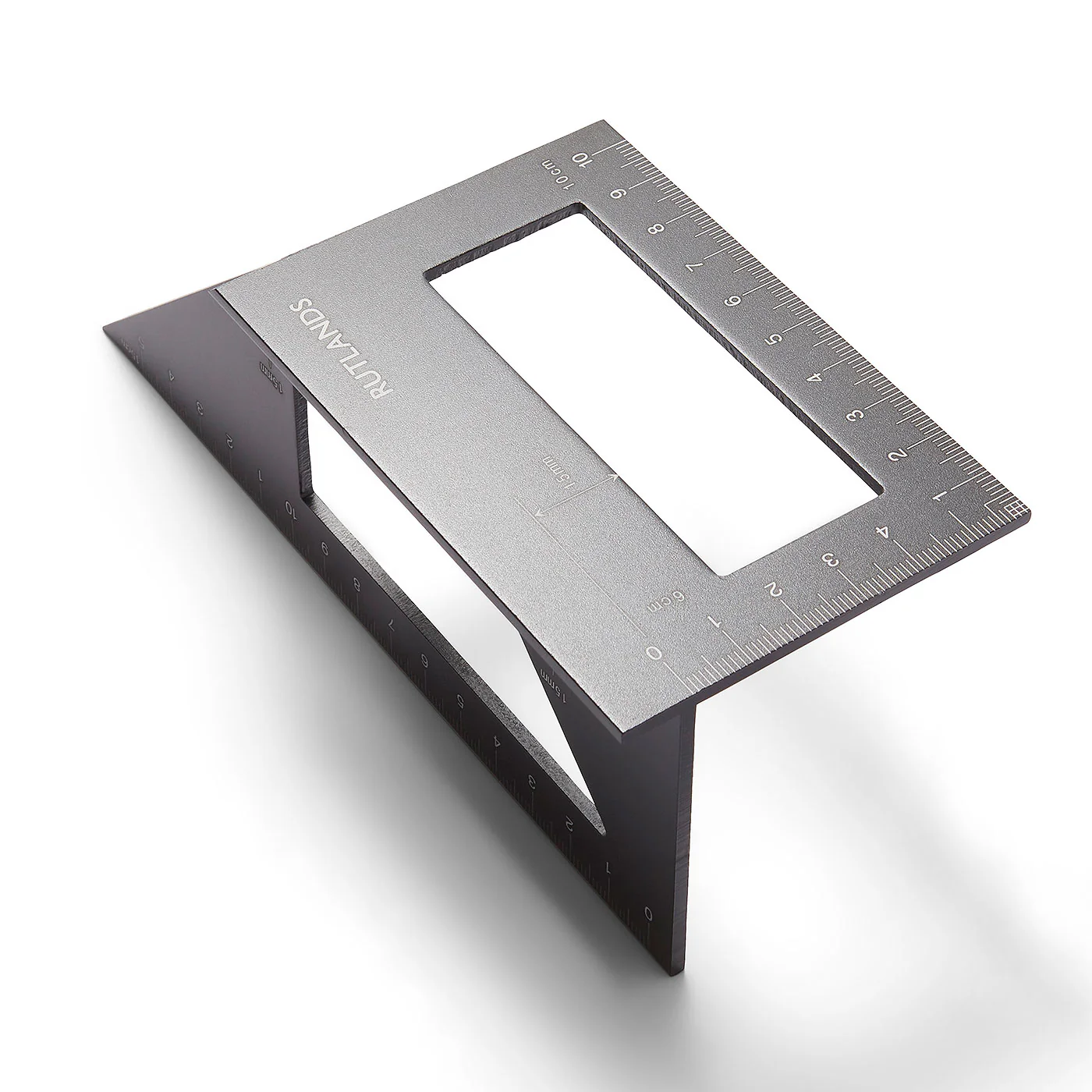

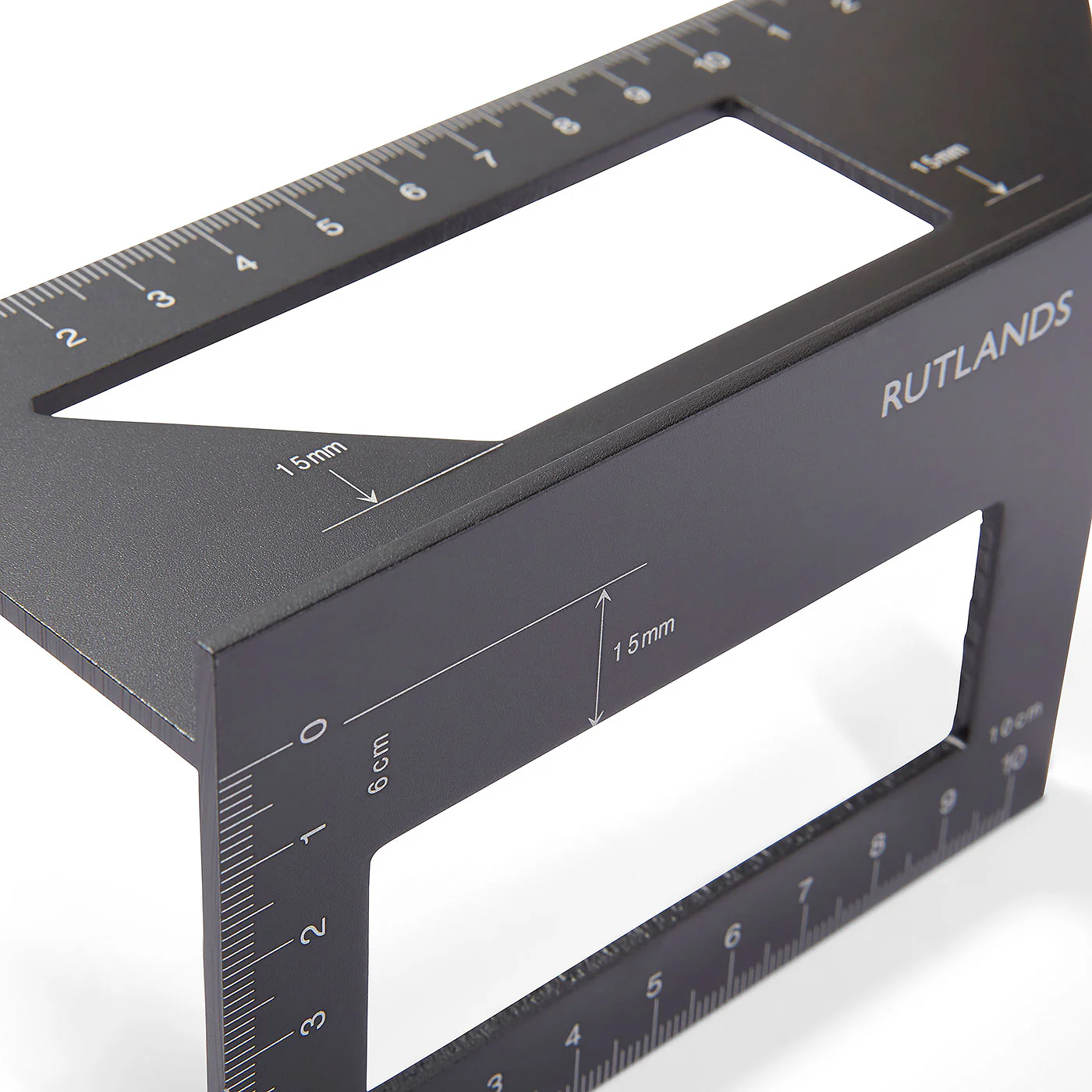

45° and 90° Marking Square

This marking square allows you to easily and accurately transfer markings from one face of the wood to an adjacent face. Use the square to easily mark at 45° or 90° - the most popular and widely used angles. The inner edge of both windows are both 15mm from the edge of the wood which allows you to easily scribe a line from the edge of your workpiece at this preset distance.

The square has been CNC machined from a single piece of aircraft grade aluminium. The square has then been black anodised finished which will protect it against scratches and make it durable. Three crisp and clear metric scales have then been laser etched onto three sides of the square.

The three-dimensional layout square has an overall length of 170mm with the width of each arm being 50mm. The 1mm graduations are laser etched for complete accuracy. ©
