-70%Self-Centering Dowel Jig—
$284.64
$85.39The Story

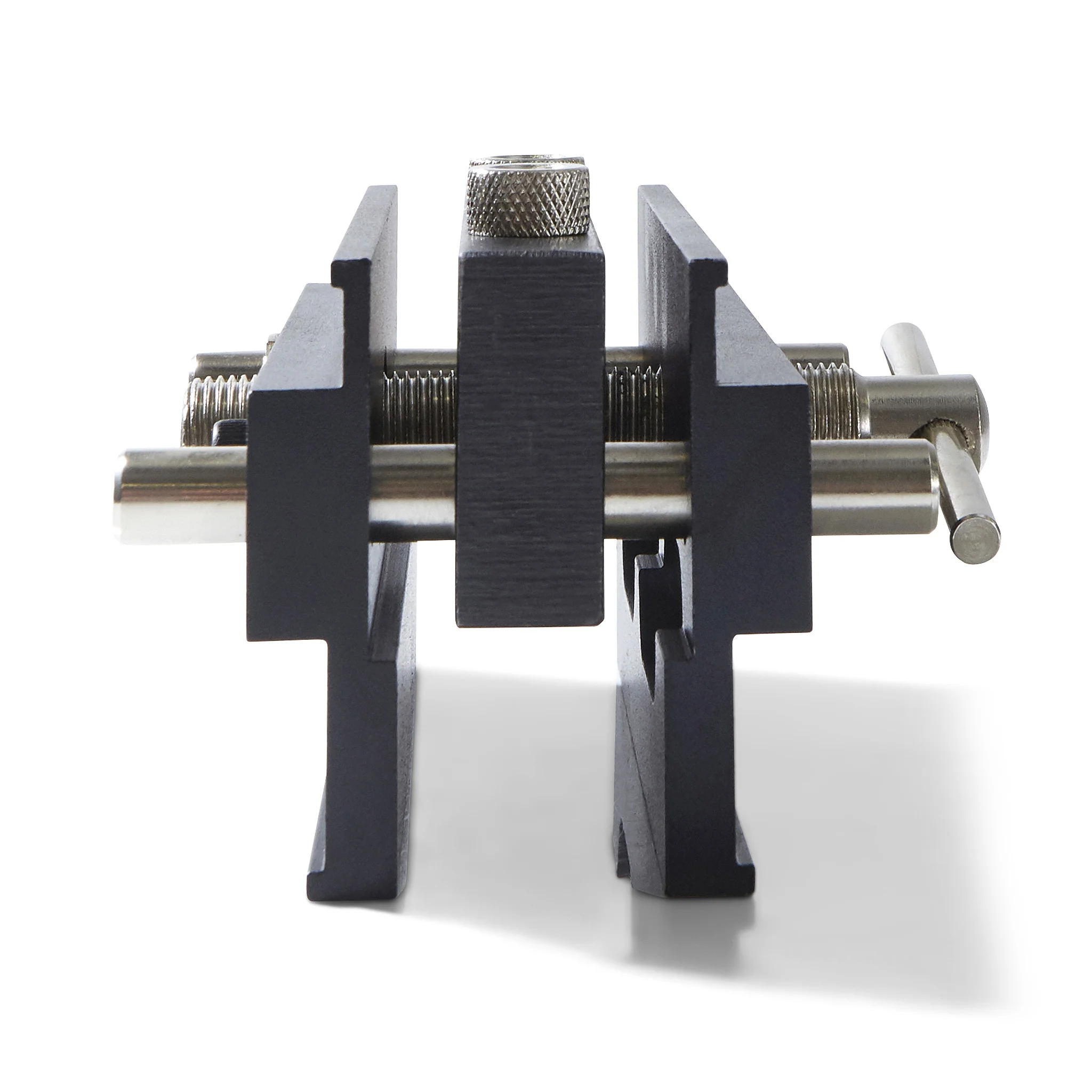

This self centering dowel jig is manufactured from CNC machined aircraft-grade aluminium and beautifully finished in black electro-coating. This doweling jig automatically centres itself on any board from 10mm to 60mm wide. The jig comes with two sets of removable steel bushings for hole sizes 6, 8 and 10mm, allowing you to drill two holes of the same size at one setting.

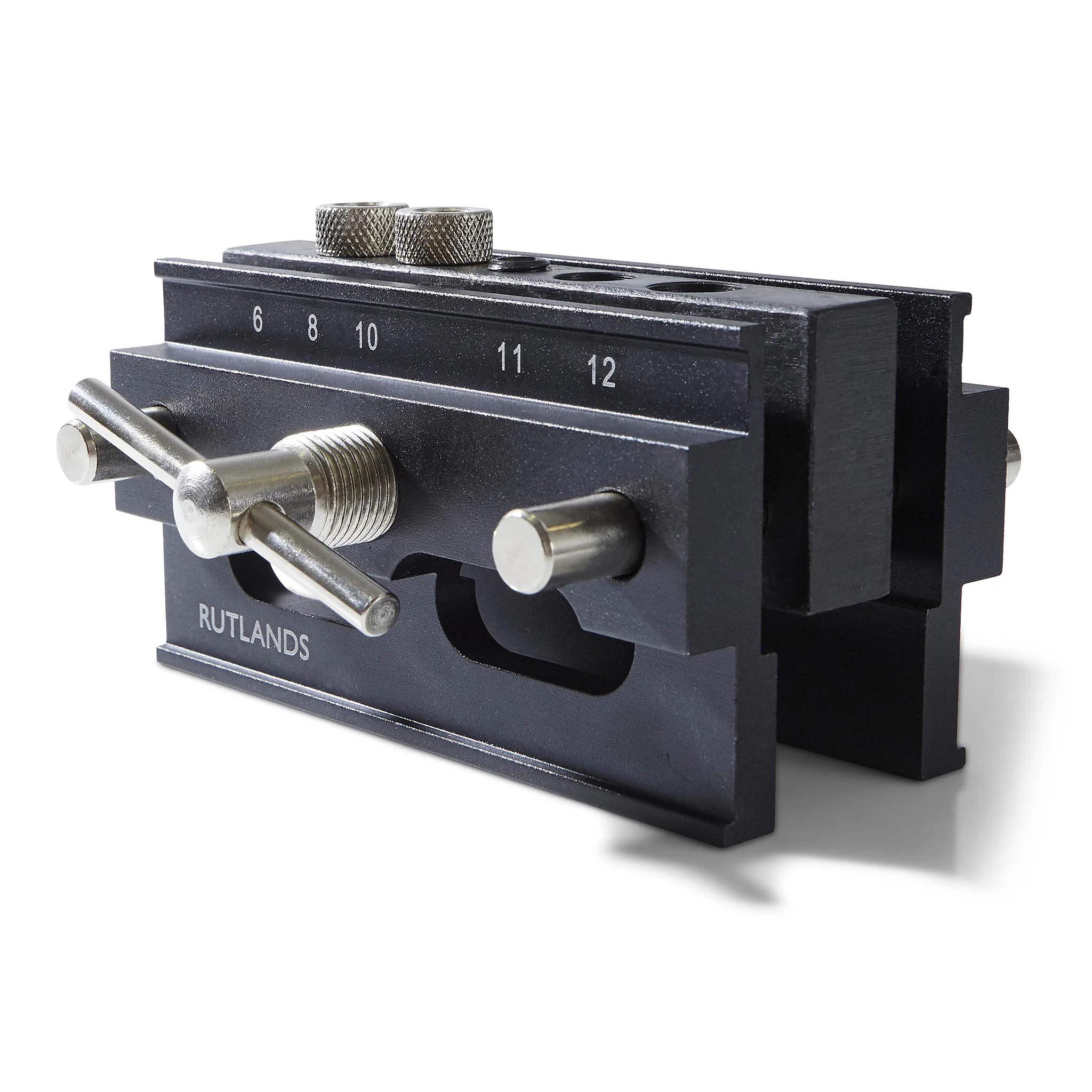

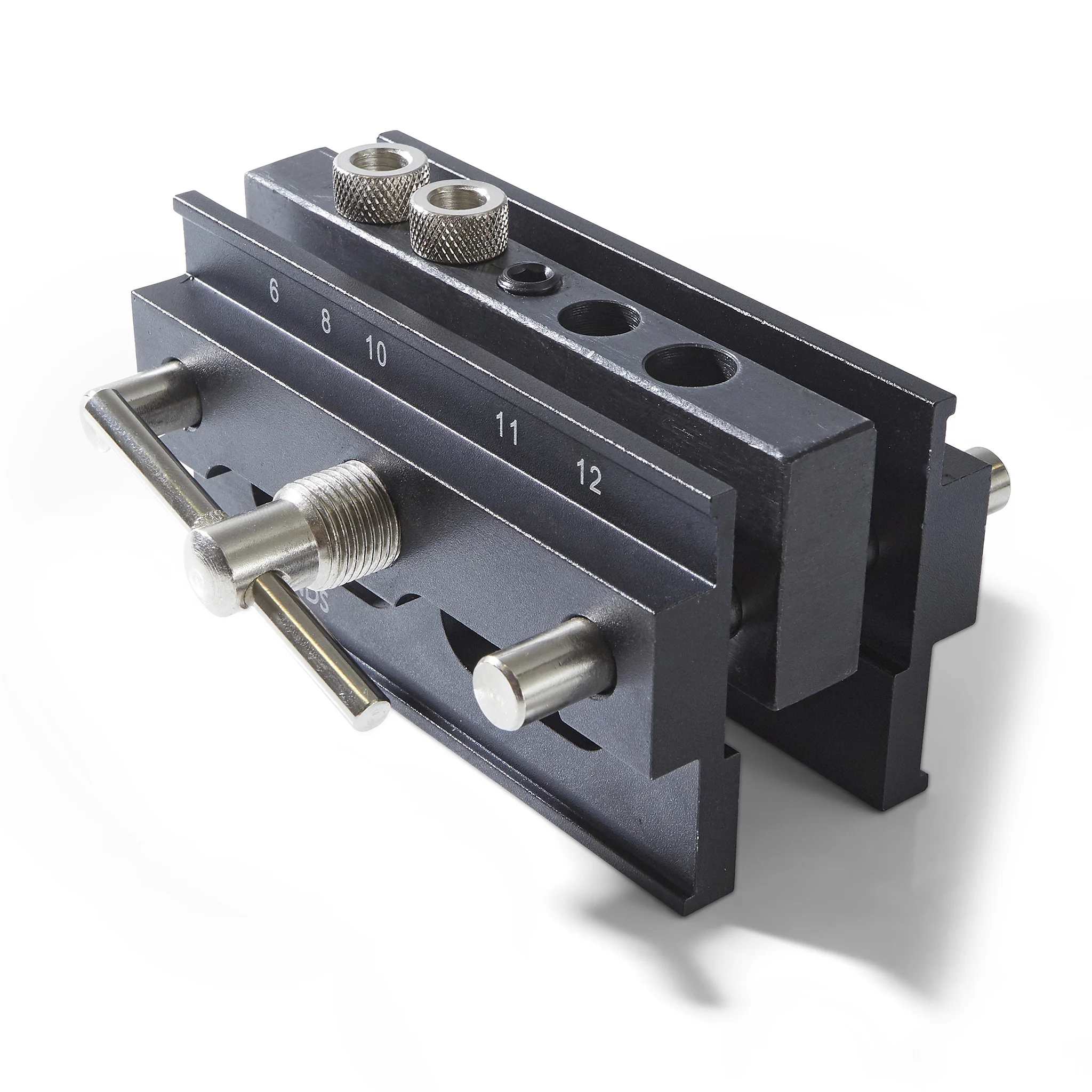

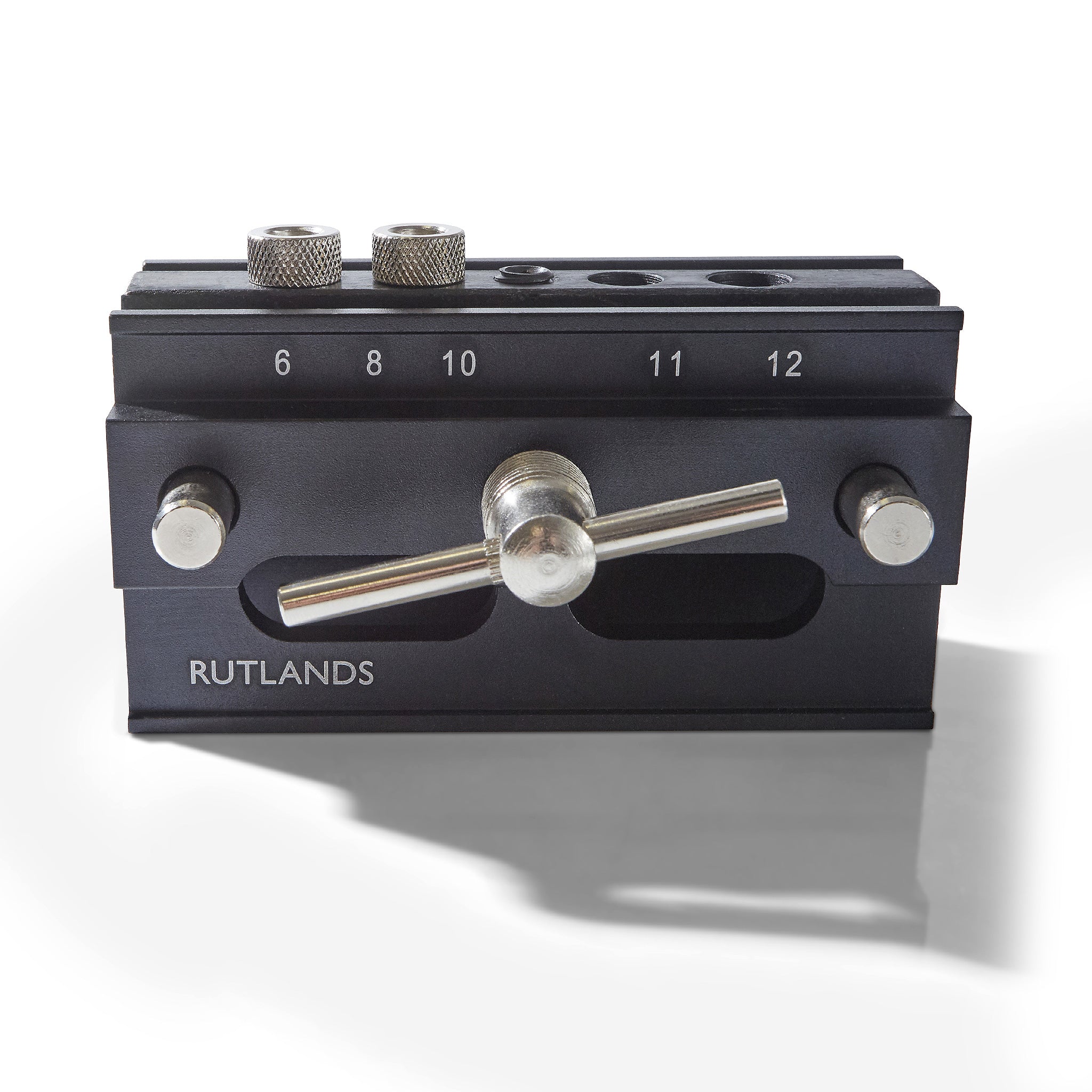

The threaded bushes are manufactured from tool steel to prevent wear and play, guaranteeing a consistent and true drilling line. The bushes are used in the two holes on the left of the jig, with the two on the right being used for non-bush drilling of 11mm and 12mm diameter holes.

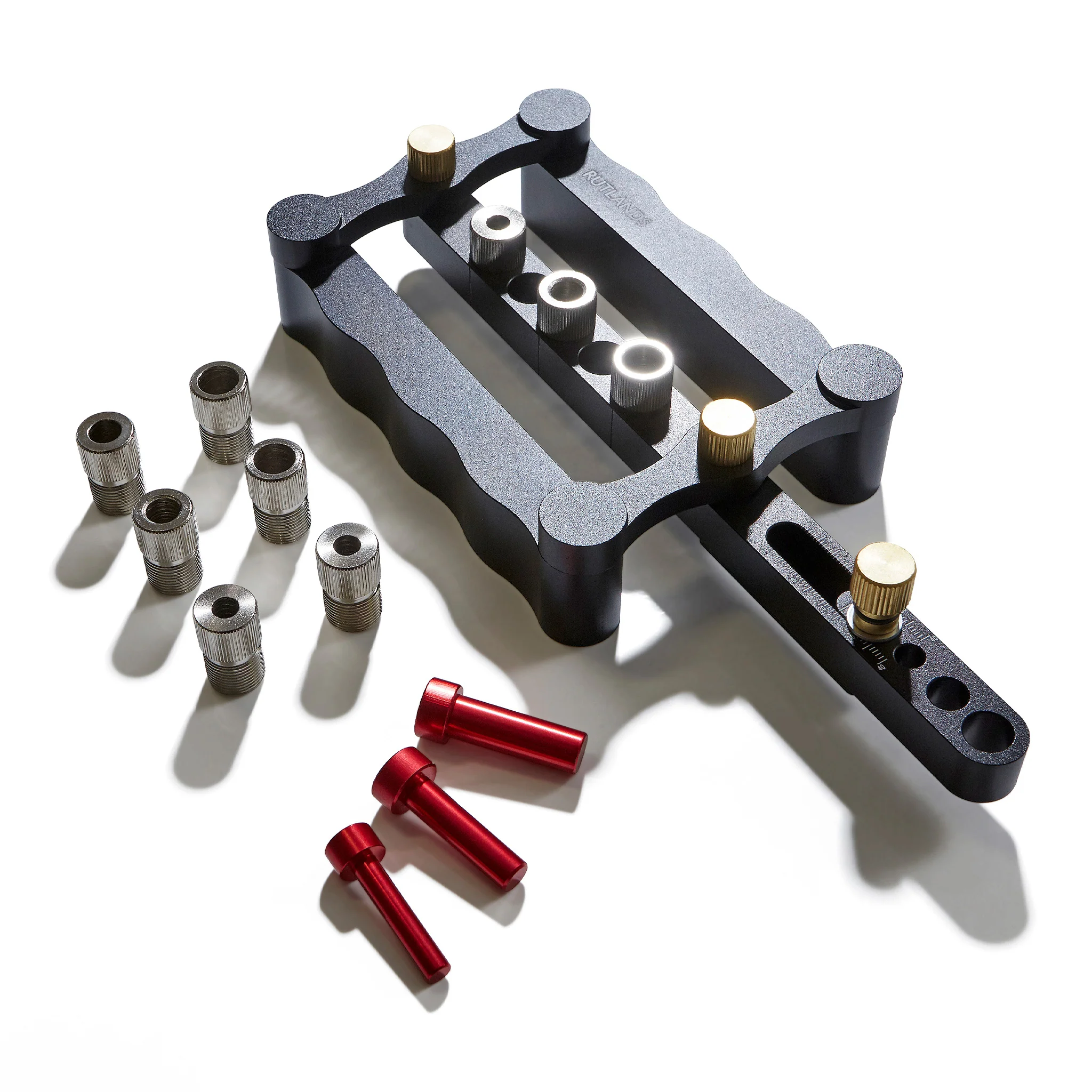

Open and closing of the jig jaws is smooth and consistent and the lead screw has a fast action acme thread. This dowel jig is extremely simple to set up, precise and very well engineered. The CNC machined dowel jig is supplied with 2 x 6mm guide bushes, 2 x 8mm guide bushes and 2 x 10mm guide bushes. ©
The threaded bushes are manufactured from tool steel to prevent wear and play, guaranteeing a consistent and true drilling line. The bushes are used in the two holes on the left of the jig, with the two on the right being used for non-bush drilling of 11mm and 12mm diameter holes.
Open and closing of the jig jaws is smooth and consistent and the lead screw has a fast action acme thread. This dowel jig is extremely simple to set up, precise and very well engineered. The CNC machined dowel jig is supplied with 2 x 6mm guide bushes, 2 x 8mm guide bushes and 2 x 10mm guide bushes. ©
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
This self centering dowel jig is manufactured from CNC machined aircraft-grade aluminium and beautifully finished in black electro-coating. This doweling jig automatically centres itself on any board from 10mm to 60mm wide. The jig comes with two sets of removable steel bushings for hole sizes 6, 8 and 10mm, allowing you to drill two holes of the same size at one setting.
The threaded bushes are manufactured from tool steel to prevent wear and play, guaranteeing a consistent and true drilling line. The bushes are used in the two holes on the left of the jig, with the two on the right being used for non-bush drilling of 11mm and 12mm diameter holes.
Open and closing of the jig jaws is smooth and consistent and the lead screw has a fast action acme thread. This dowel jig is extremely simple to set up, precise and very well engineered. The CNC machined dowel jig is supplied with 2 x 6mm guide bushes, 2 x 8mm guide bushes and 2 x 10mm guide bushes. ©
The threaded bushes are manufactured from tool steel to prevent wear and play, guaranteeing a consistent and true drilling line. The bushes are used in the two holes on the left of the jig, with the two on the right being used for non-bush drilling of 11mm and 12mm diameter holes.
Open and closing of the jig jaws is smooth and consistent and the lead screw has a fast action acme thread. This dowel jig is extremely simple to set up, precise and very well engineered. The CNC machined dowel jig is supplied with 2 x 6mm guide bushes, 2 x 8mm guide bushes and 2 x 10mm guide bushes. ©
